Liquid pressure and temperature sensor (10bar / 140 deg C) BOSCH, multi

Liquid pressure and temperature sensor (10bar / 140 deg C)

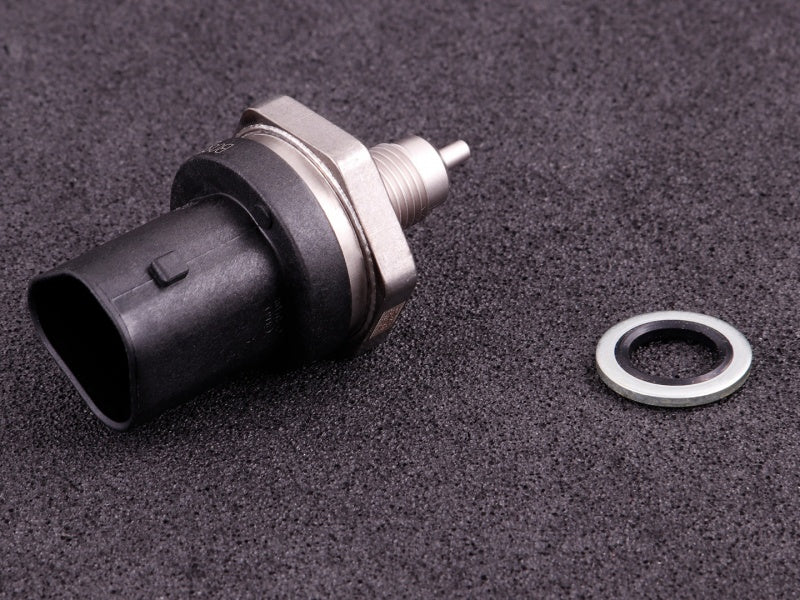

Combined sensor for pressure and temperature measurement of oil. Stainless steel sealing ring included. Bosch.

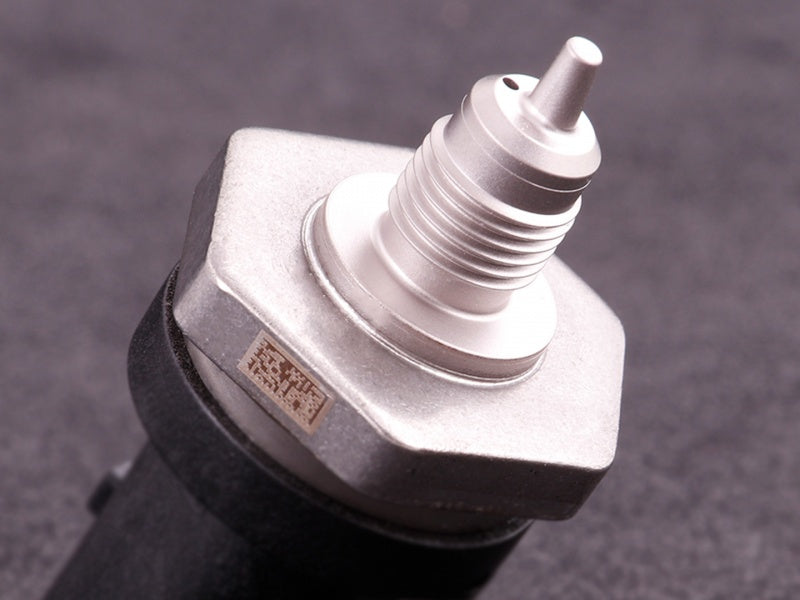

M10x1.0 thread.

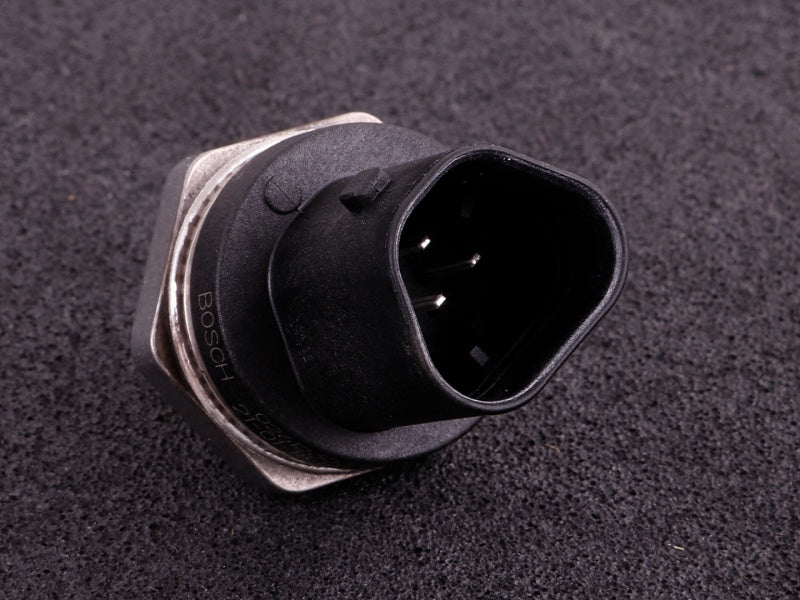

• pin2: Pressure signal out (0.5V = 0bar, 4.5V = 10bar)
• pin3: +5V sensor supply
• pin4: Sensor GND
• pin5: Temperature signal out (44864ohm = -40 deg C, 72ohm = 140 deg C)

The pressure output is wired to an AIN (0-5V) input.
The temperature output is wired to an AIN (TEMP) input which has built-in +5V pullup.
